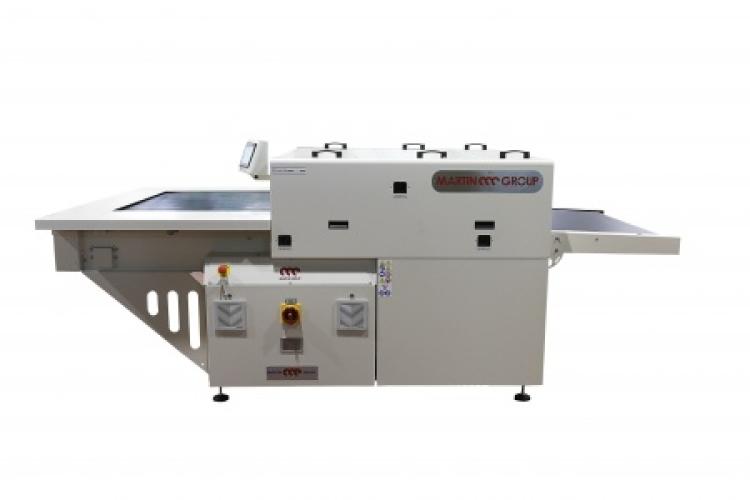

Fusing Machine Martin

Coe: Martin serie x

X 600-1000-1400-1600-1800 K-EL-OT

Effective worktop mm. 600-1000-1400-1600-1800

Upper and lower heating system with 2 indipendent electronic thermostats (entry zone, preheating + exit zone)
Heating top with 9 resistive elements which allow the use of lower temperatures or of a shorter manufacturing time
System of resistance choking for a thorough uniformity of the working temperature
Pressure from 0 to 5 kg./sqcm
Temperature from 0 to 210° C
Working time adjustment from 5 to 35sec
Speed from 1 to 10 m per min.

Return version: with return belt

Complete with:

FULLY AUTOMATICS STACKER WITH ONE OR TWO NLOADING RACES

Races electronically matchable by means of simple pressing of a button, without using mechanical devices
Width of the races chosen by the Customer
Optical recognition system for the horizontal and vertical passing of the fabric
Gradual lowering of the trucks as the piled parts increase
Acustic warning of package end
DESTATIC SYSTEM for the neutralization of the electrostatic charges of the fabrics
