FPV20V

Coe: FPV20V

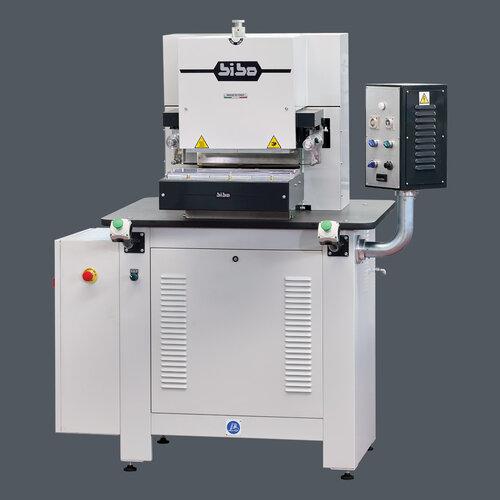

Hydraulic printing machine with movable work table and device for printing with automatic coloured paper.
The machine is very versatile as it is possible to work with a single upper die or use male/female dies.
The work table and upper print head are equipped with electromagnets to allow the moulds to be attached.

It is ideal to obtain embossed prints or to make stripes on the perimeter of the finished part ( leather, leather or synthetic) to be applied to bags, belts, wallets, shoes, etc..
The various adjustments available include, in addition to the mechanical head down stop and the print depth reading sensor, the printing time and temperature can be set independently , thus allowing use with a wide range of materials.
The colour paper feed is also adjustable.

The maximum printing area is 100 x 400mm while the movable table dimensions are 165 x 480mm.
Processing on the table is done with or without the use of positioning jigs. It can reach a printing capacity of 2 t.
Built with the most modern criteria, and in compliance with current regulations, it guarantees maximum operator safety.
